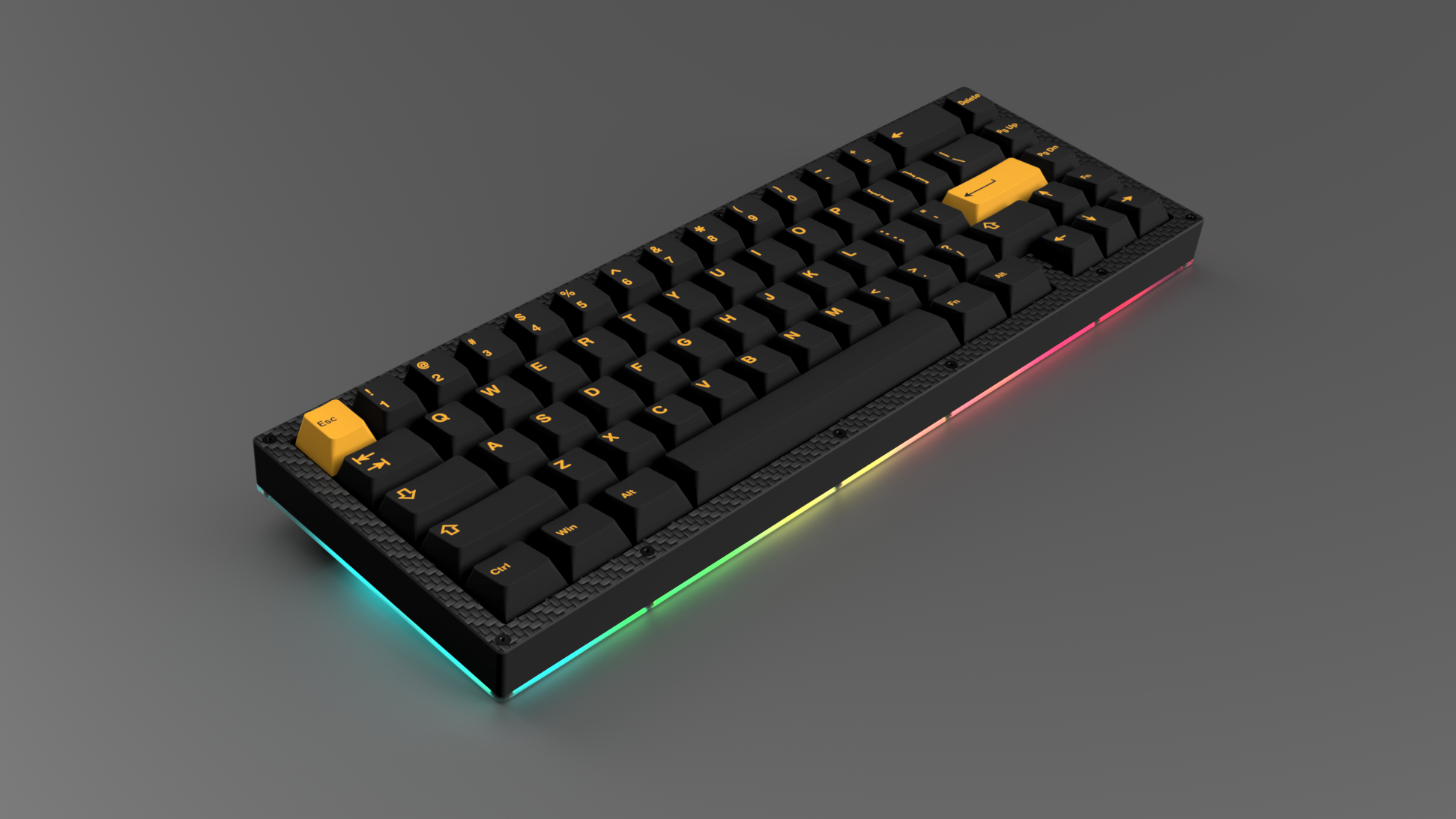

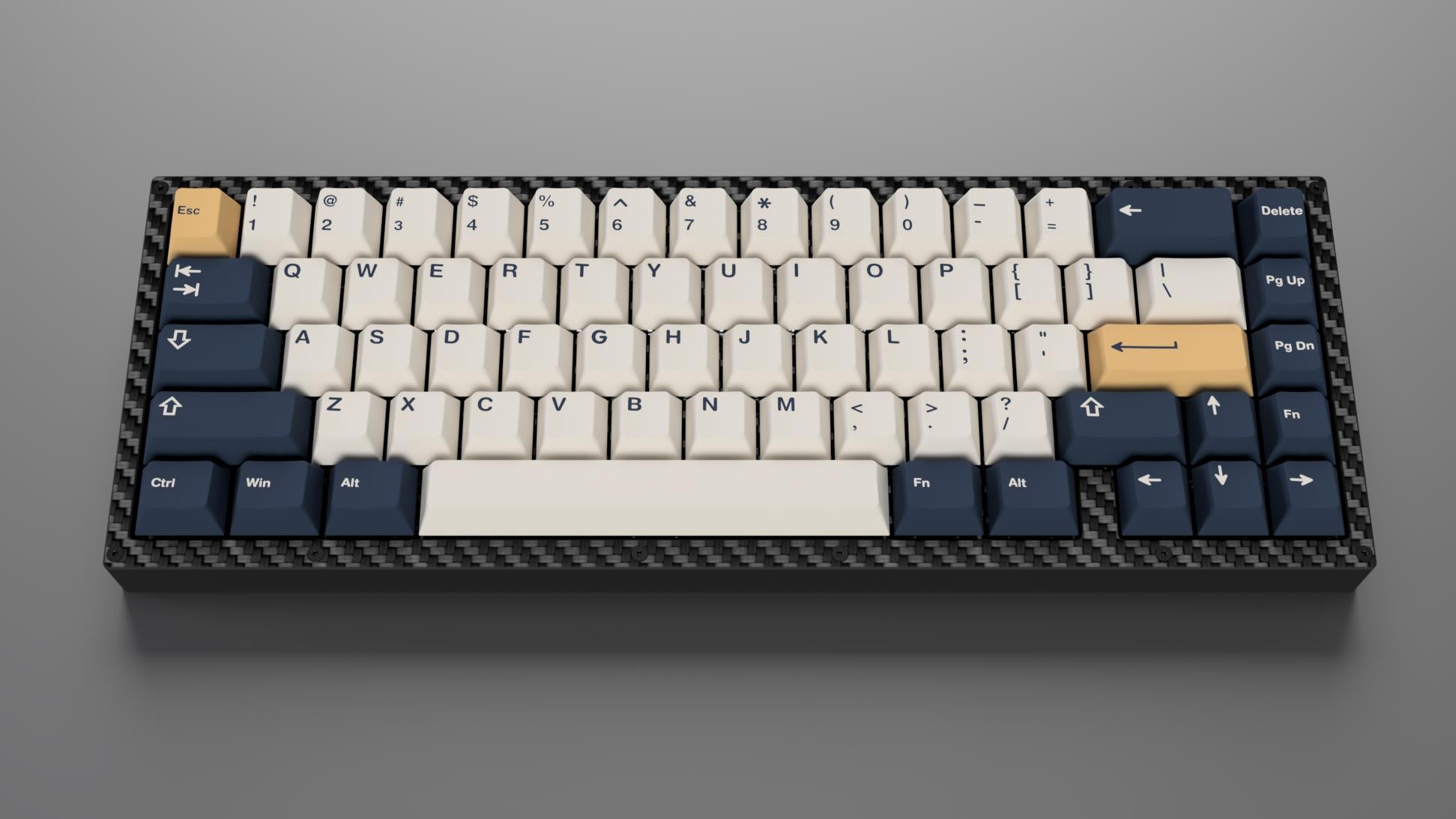

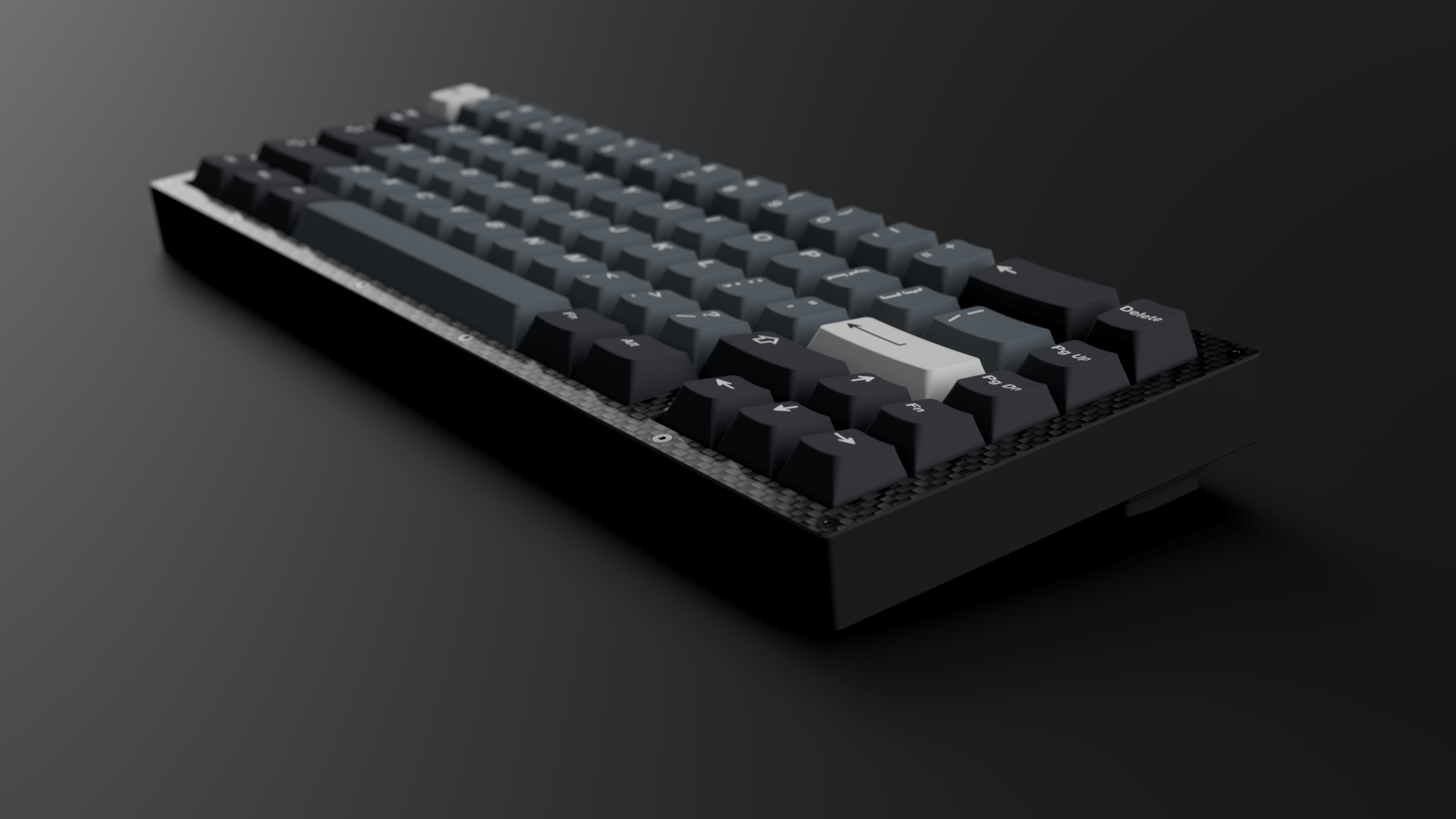

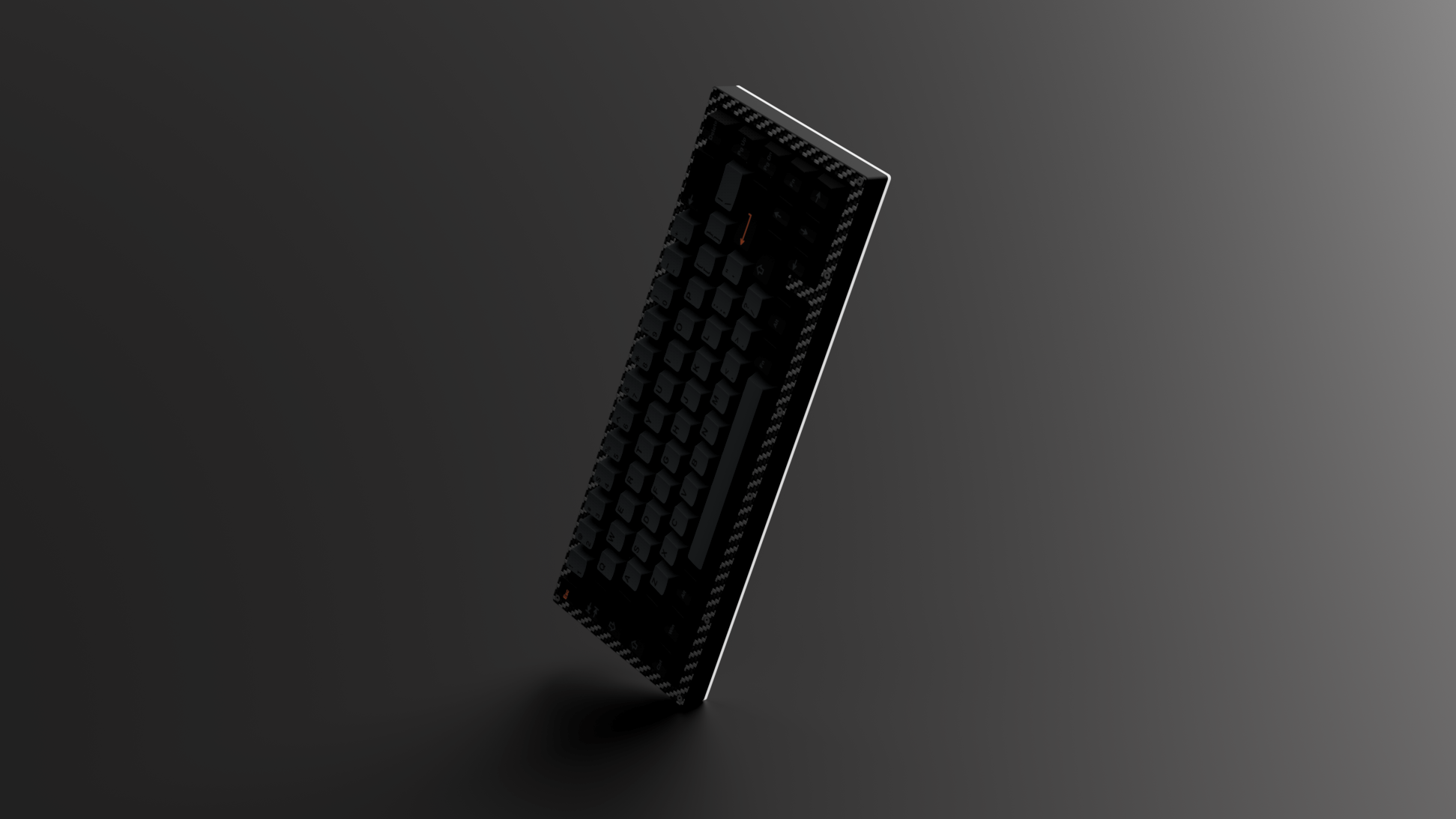

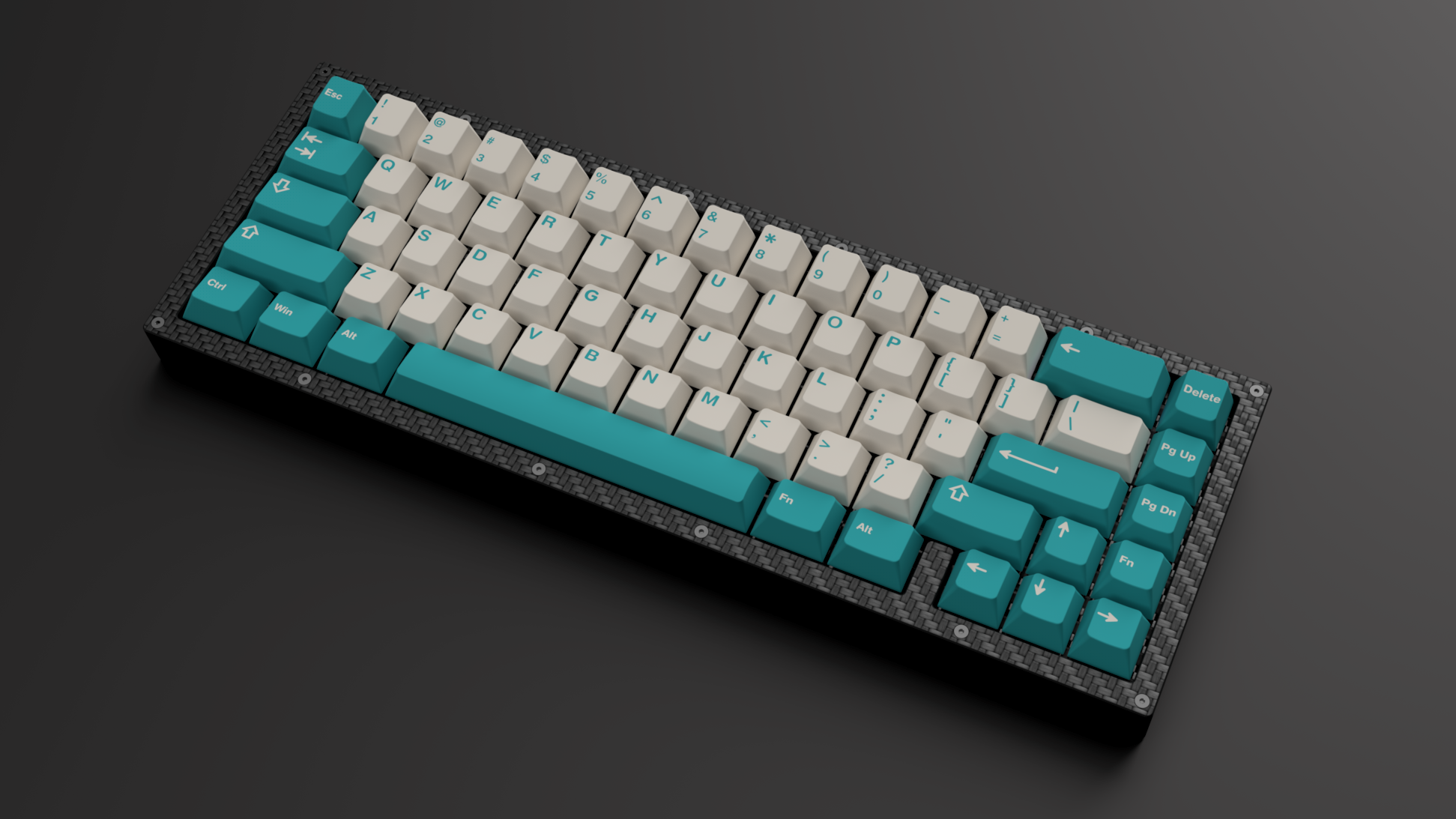

Palette Carbon G67 Keyboard Kit

Sale price Price $210.00 Regular price Unit price  per

Groupbuy ended on Feb. 21th 2021.

Palette Carbon G67 will return..

This is an unlimited groupbuy, there is no MinOQ or MaxOQ.

Join NEO Keys Discord for more information and progress updates

NEO Palette G67 Keyboard Kit

    -Designed by NEO Keys
    -Carbon fiber sandwich structure, with fully isolated, gasket mounted switch plate
    -Chamfered top and bottom layers
    -Switch plate - carbon Fiber only
    -6.5 degree typing angle

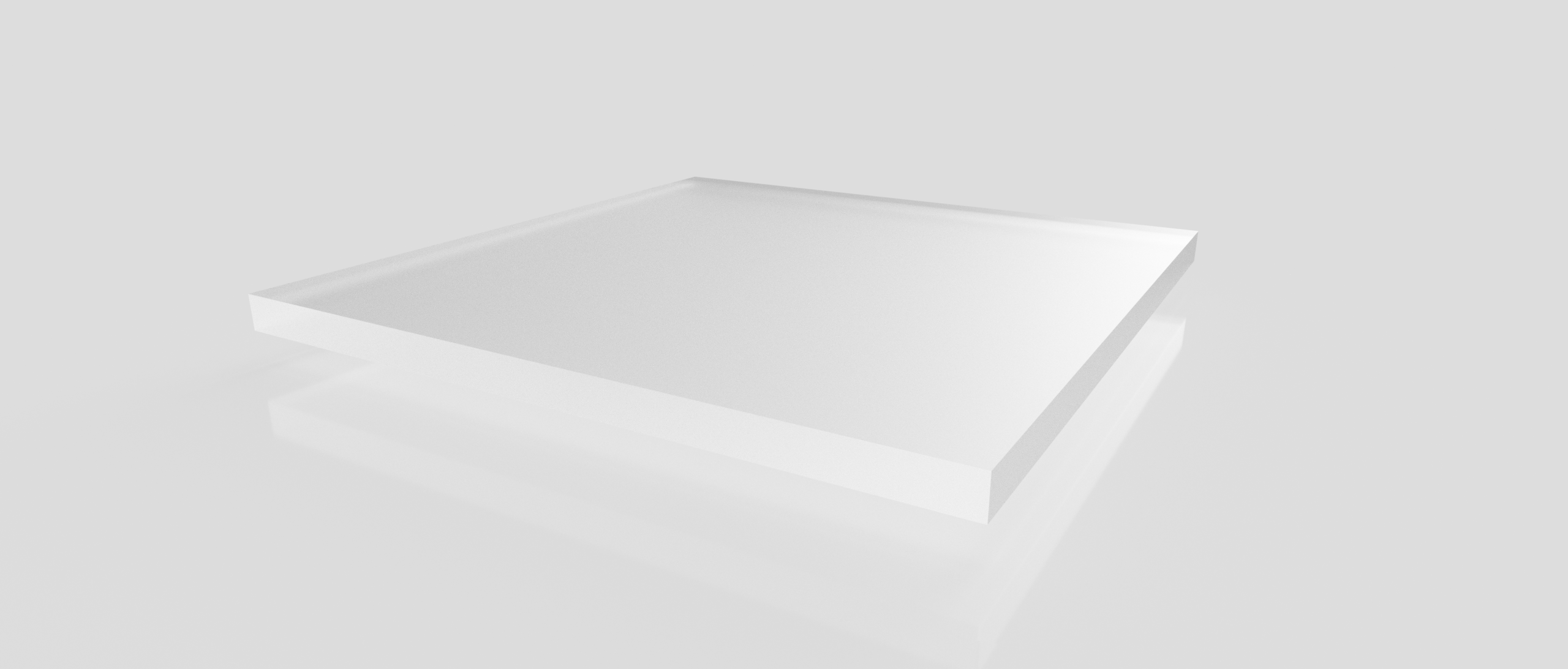

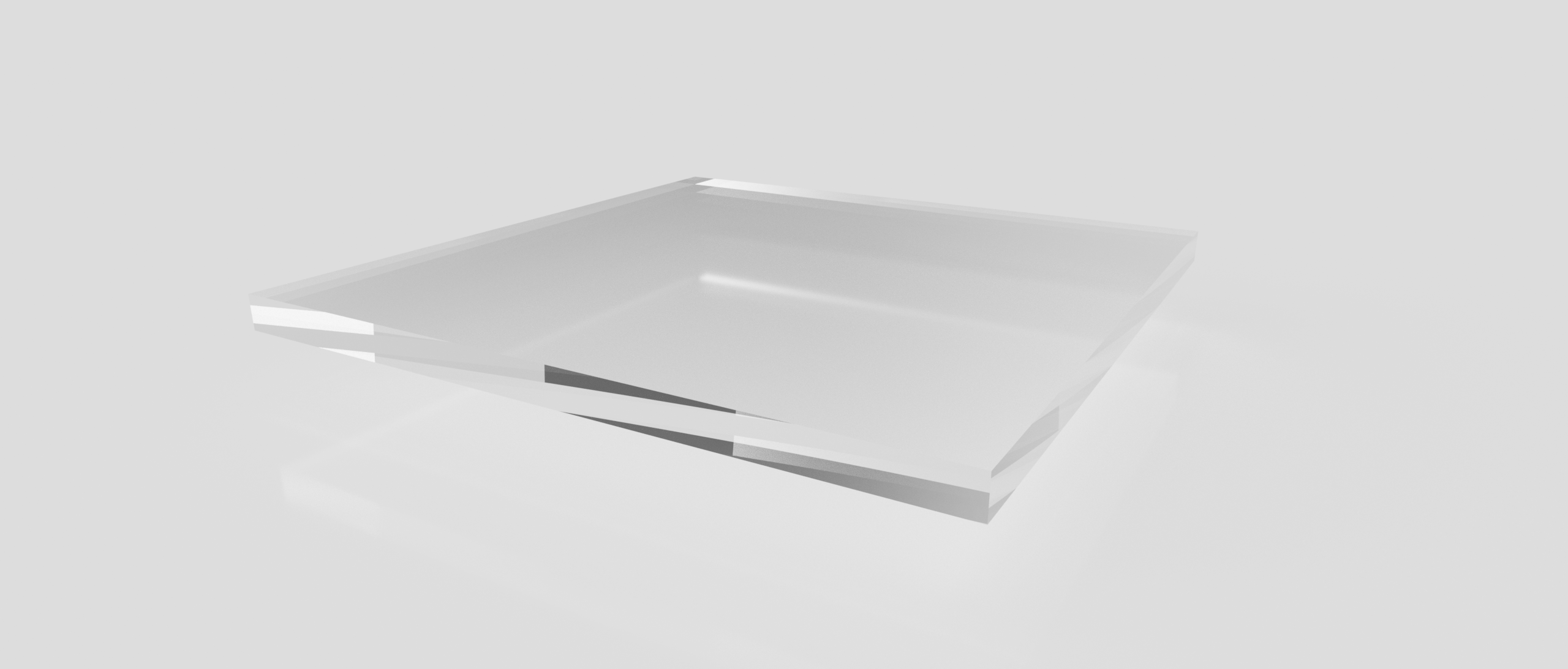

    -Extra Acrylic bottom layer included

    NEO67 Hotswap PCB

    -QMK programmable
    -North facing switch mount
    -Per-switch SMD RGB light
    -RGB blacklight
    -Center mounted USB-C port

    NEO67 Soldered PCB

    -QMK programmable
    -South facing switch mount
    -ISO, Split Backspace, 7U spacebar compatible
    -RGB blacklight LED x18! Ultra bright!
    -Center mounted USB-C port


      Dimension: 322mm*112mm*19mm


      Palette Carbon G67 kit includes:

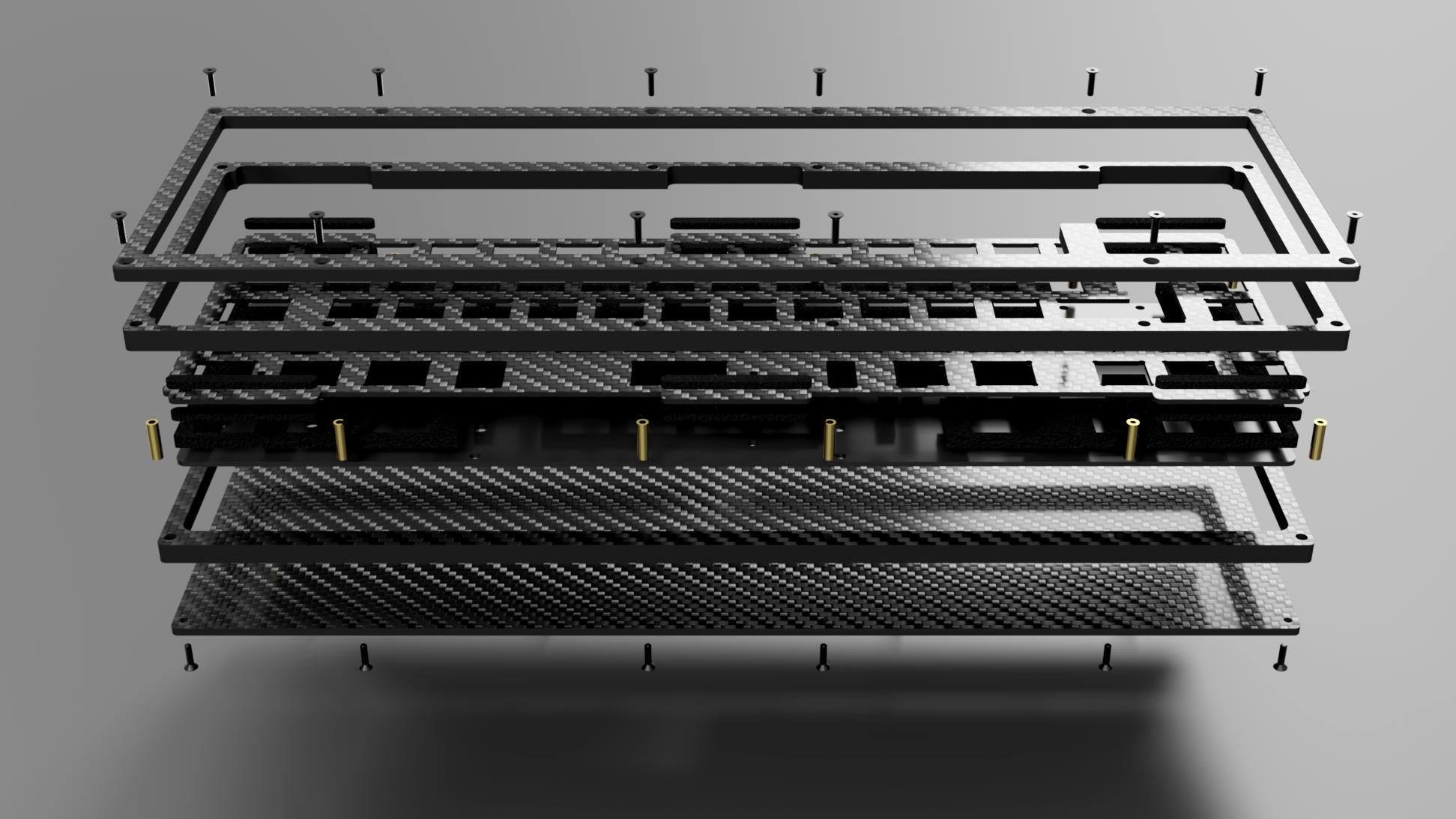

      1. Full carbon fiber case (4 layers of case body, 2 layers of feet), extra acrylic bottom layer(optional if you prefer RGB lighting)
      2. 5mm carbon fiber or 1.5mm brass plate
      3. Hotswap or soldered PCB
      4. Poron Gasket
      5. Plate/PCB foam and PCB/case foam
      6. Silicone Feet
      7. M2x8 flat head screws *32 (4 extra)
      8. M2x10 brass posts *16 (4 extra)
      9. M2x4 round head screws *6 (2 extra)
      10. M2x5 brass posts *6 (2 extra)
      11. M2x3 low profile flat head screws *16 (4 extra)
      12. 5 custom aluminum posts *8 (2 extra)
      13. USB-C Cable
      14. Microfabric cloth


      Extra PCB/Plate kit includes:

      1. PCB
      2. Plate
      3. PCB/Plate foam
      4. Gaskets
      5. M2x3 low profile flat head screws *16 (4 extra)
      6. 5 custom aluminum posts *8 (2 extra)

      *Switches and keycaps are not included

      Firmware downloads
