NEO Palette G88 Keyboard Kit

GB Starting soon....

Palette G88 is the fourth design of NEO Keys, and the first TKL layout model.

Assembly Guide is HERE. It's complicated and fun build, please go through the instructions before building.

It is a gasket mount, stacked acrylic, daughter board supported, variable layout compatible F13 TKL custom keyboard kit.

Features and upgrades (from Palette G67):

- Hybrid acrylic materials: Frosted 2.75mm cast acrylic, clear 2.5mm extruded acrylic and clear 3.5mm acrylic.

- Improved PCB to case bottom clearance for more plate flex, providing enhanced typing experience.

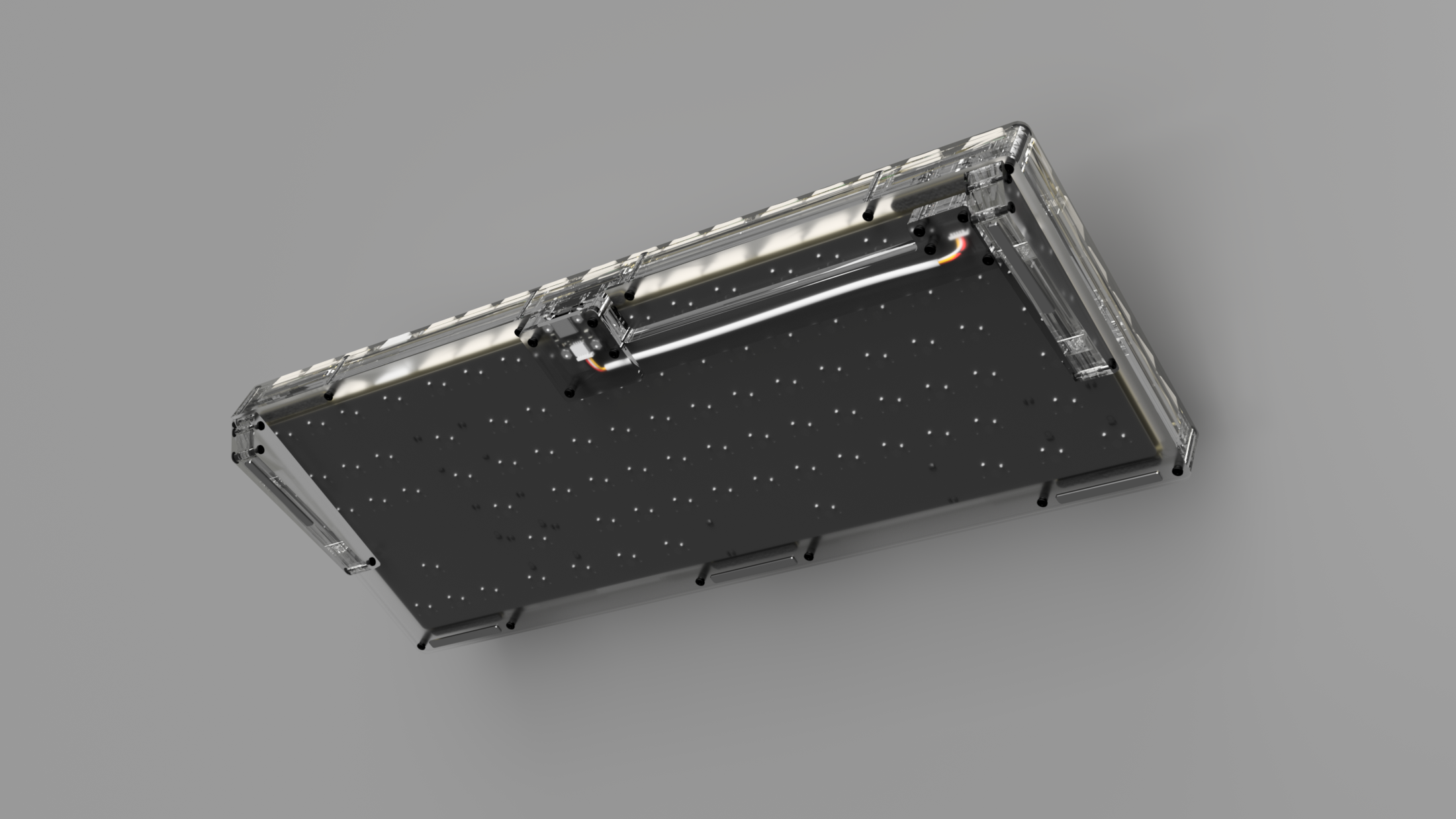

- Daughter board is used instead of integrated USB-C port, thus case body is fully closed and has no visible cut outs. Case is visually integral, strudcturally rigid and durable.

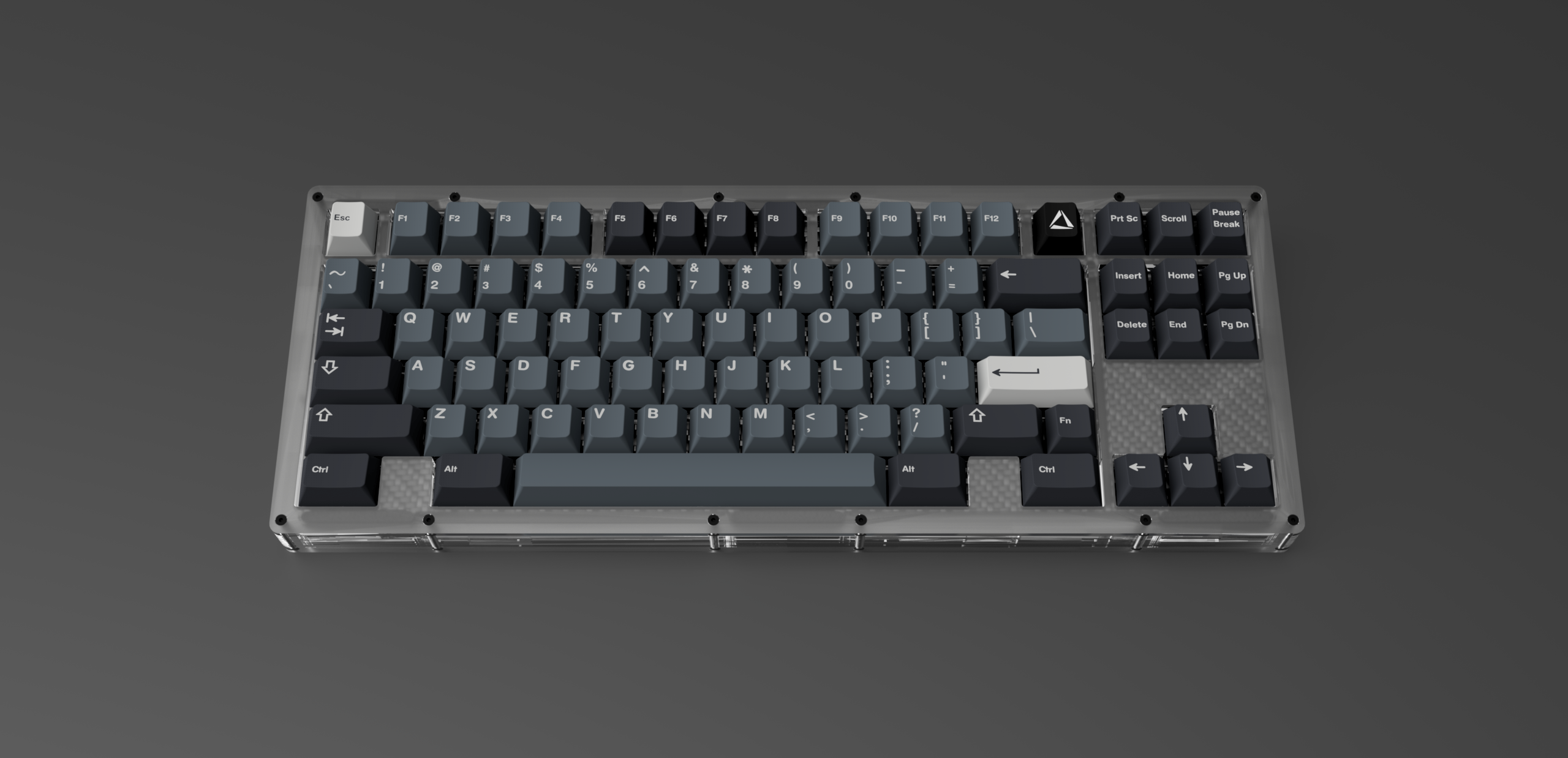

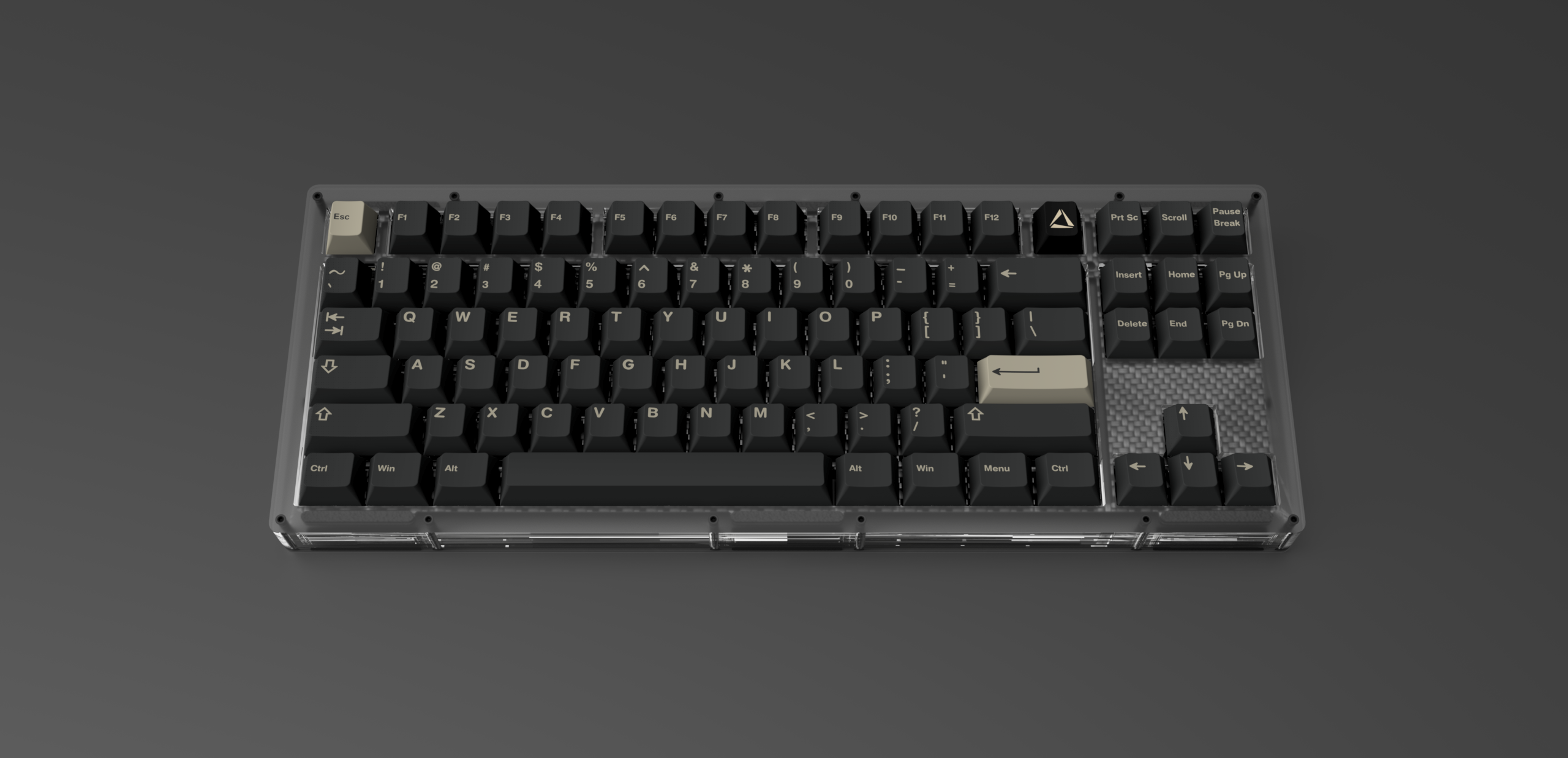

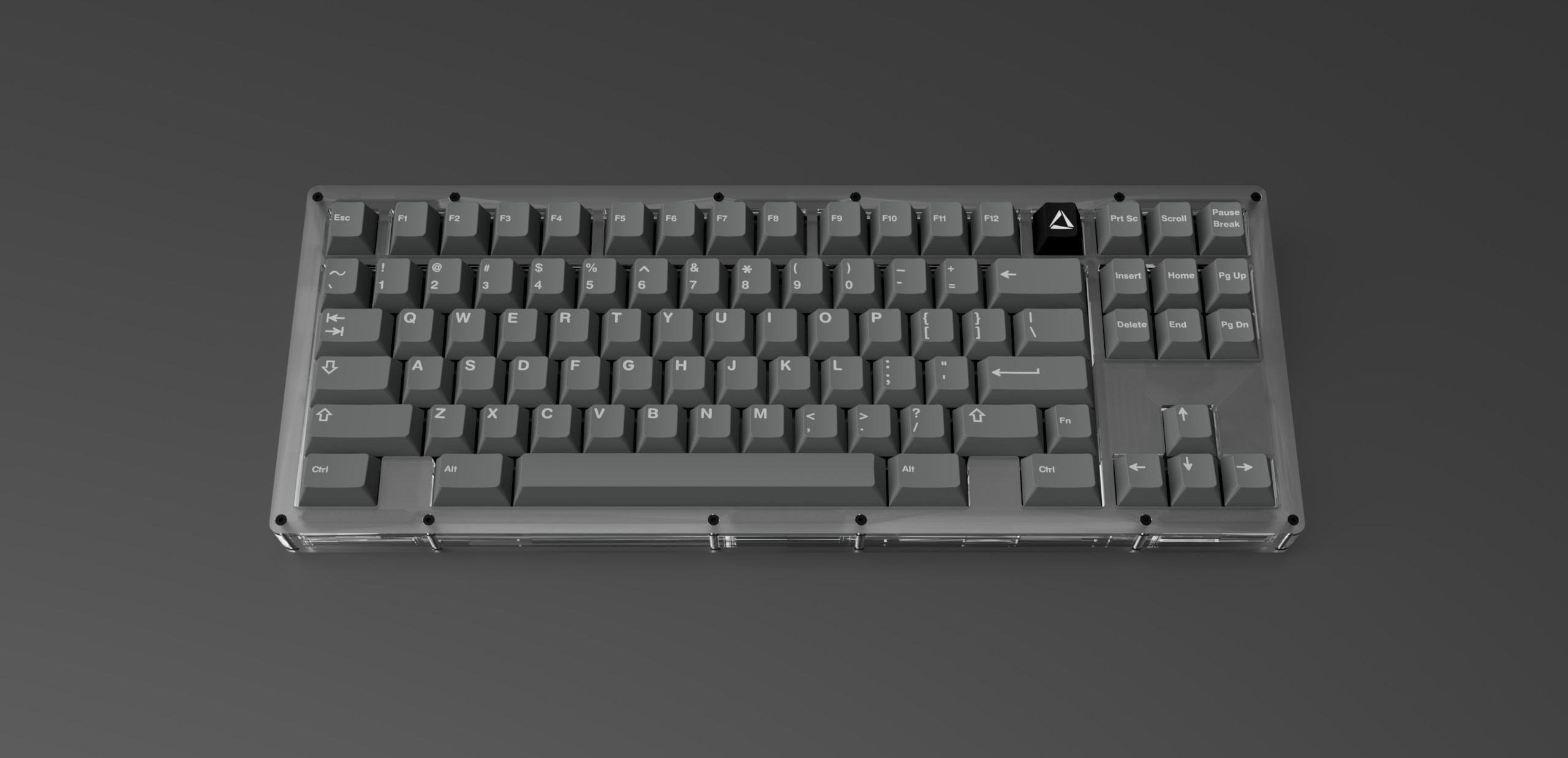

- Advanced PVD finish process provides vibrant and rich colors in gold, gun metal grey and rarely seen blue and purple. Carbon Fiber and FR4 plates are also offered.

- Full aluminum standoffs.

Case Dimension: 364.6mm*140mm*20.6mm(front)/36.5mm(rear); 6.5 degree typing angle

PCB Specs:

QMK programmable, VIA supported
C3 Unified daughterboard

Soldered PCB - ANSI/ISO compatible; split backspace, split right shift and WKL supported; LED underglow; screw-in stabs only.

Hotswap version – ANSI only; LED underglow; per key LED; screw-in stabs only.
